2. Connect a second control plane

This section adds a second kind cluster to the hub you installed in part one, installs hub-connector in it, and registers it with your running hub.

Create the second cluster

Create a new kind cluster the hub API reaches over the Docker network.

kind create cluster --name hub-quickstart-extra

Expose the hub API

important

A production install routes all traffic through a Gateway. This step exists only because you're connecting two kind clusters.

In the demo, hub-core and its token exchange are ClusterIP Services, reachable only from inside the demo cluster. Add two NodePort Services alongside them so the second cluster can connect.

kubectl --context kind-hub-quickstart -n hub apply -f - <<'EOF'
apiVersion: v1
kind: Service
metadata:
  name: hub-core-nodeport
spec:
  type: NodePort
  selector:
    app.kubernetes.io/name: hub-core
    app.kubernetes.io/instance: hub
  ports:
    - name: http
      port: 8080
      targetPort: http
      nodePort: 30080
---
apiVersion: v1
kind: Service
metadata:
  name: hub-core-token-exchange-nodeport
spec:
  type: NodePort
  selector:
    app.kubernetes.io/name: hub-core
    app.kubernetes.io/instance: hub
  ports:
    - name: token-exchange
      port: 8444
      targetPort: token-exchange
      nodePort: 30444
EOF

The selectors match the labels the hub-core Pods already carry, so these Services route to the running API without changing the originals.

Create a registration token

Every control plane gets its own registration token. The connector presents that token the first time it contacts the hub API, which tells the hub which control plane the connector speaks for.

1. Open the control planes page and sign in as admin / admin.

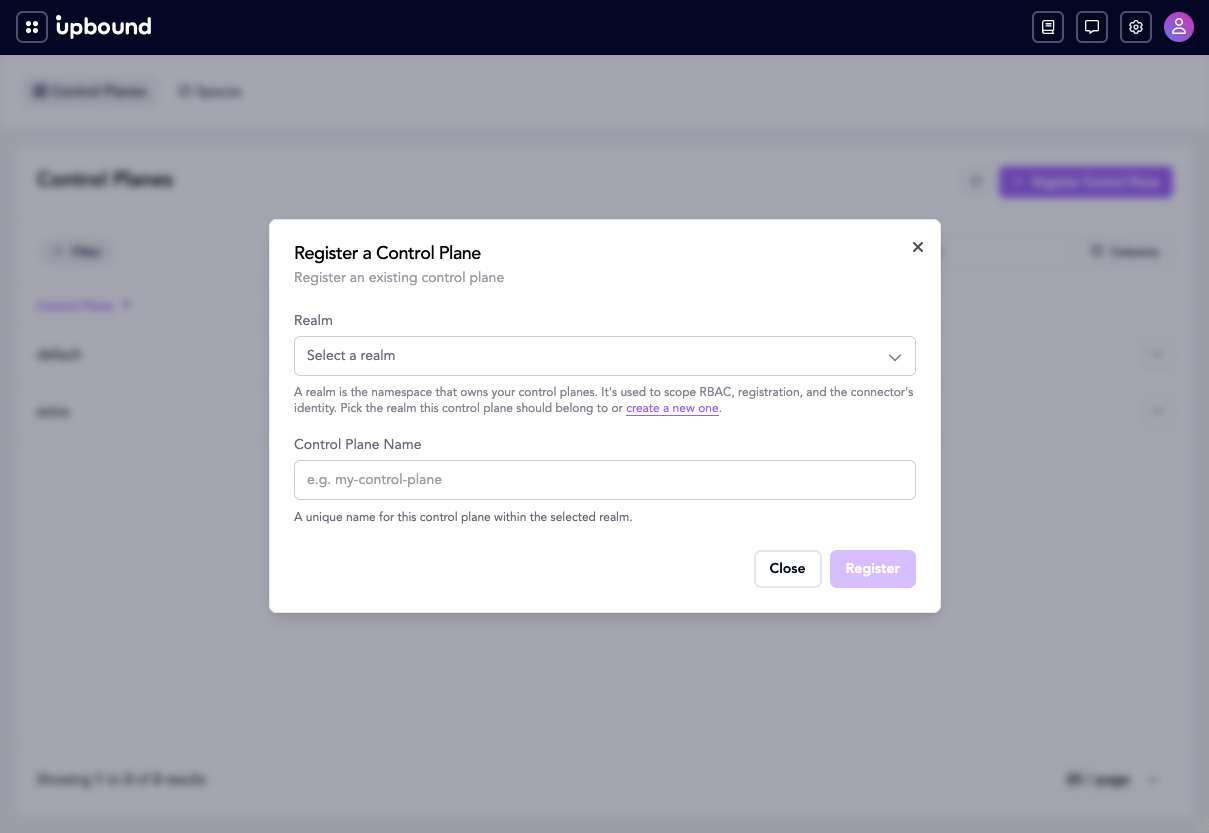

2. Create a ControlPlane in the default realm and name it extra.
3. Copy the registration token. The hub displays it once.

4. Save it for the next step:

export HUB_EXTRA_CTP_TOKEN=<paste-registration-token-here>

Install hub-connector

The connector dials hub-quickstart-control-plane:30080 for the API and :30444 for token exchange. Docker resolves that hostname to the demo cluster's control plane container with its embedded DNS.

kubectl --context kind-hub-quickstart-extra create namespace hub

kubectl --context kind-hub-quickstart-extra -n hub create secret generic hub-connector-credentials \
  --from-literal=registrationToken="$HUB_EXTRA_CTP_TOKEN"

helm install hub-connector oci://xpkg.upbound.io/upbound/hub-connector \
  --kube-context kind-hub-quickstart-extra \
  --version 1.0.0 \
  --namespace hub \
  --set connector.hub.url=http://hub-quickstart-control-plane:30080 \
  --set connector.hub.tokenExchangeUrl=http://hub-quickstart-control-plane:30444 \
  --set connector.hub.allowInsecure=true \
  --set connector.credentials.existingSecretRef.name=hub-connector-credentials \
  --wait --timeout 2m

Refresh the hub and confirm the second cluster is online.

Navigate to the resources page. You can filter by control plane to only lists resources in your default or extra control plane.

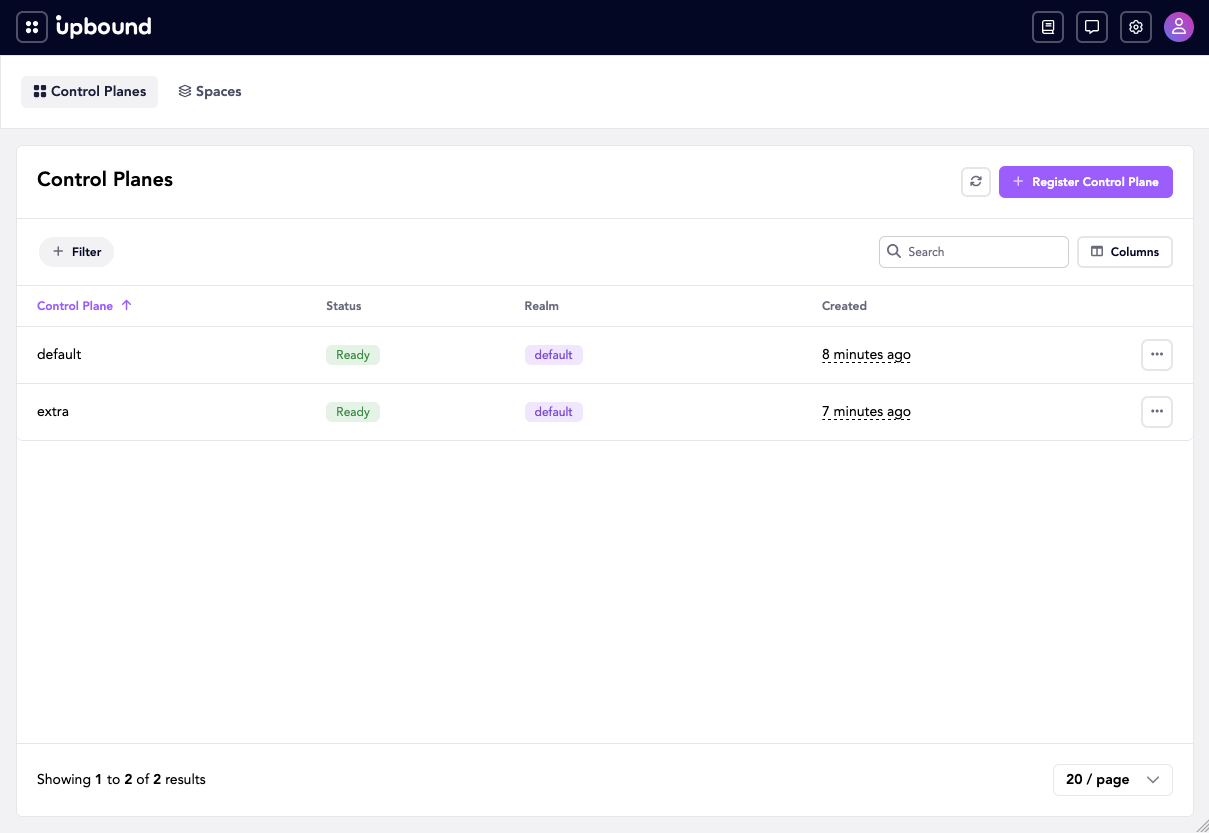

In the control planes page lists extra next to default with a Ready status.

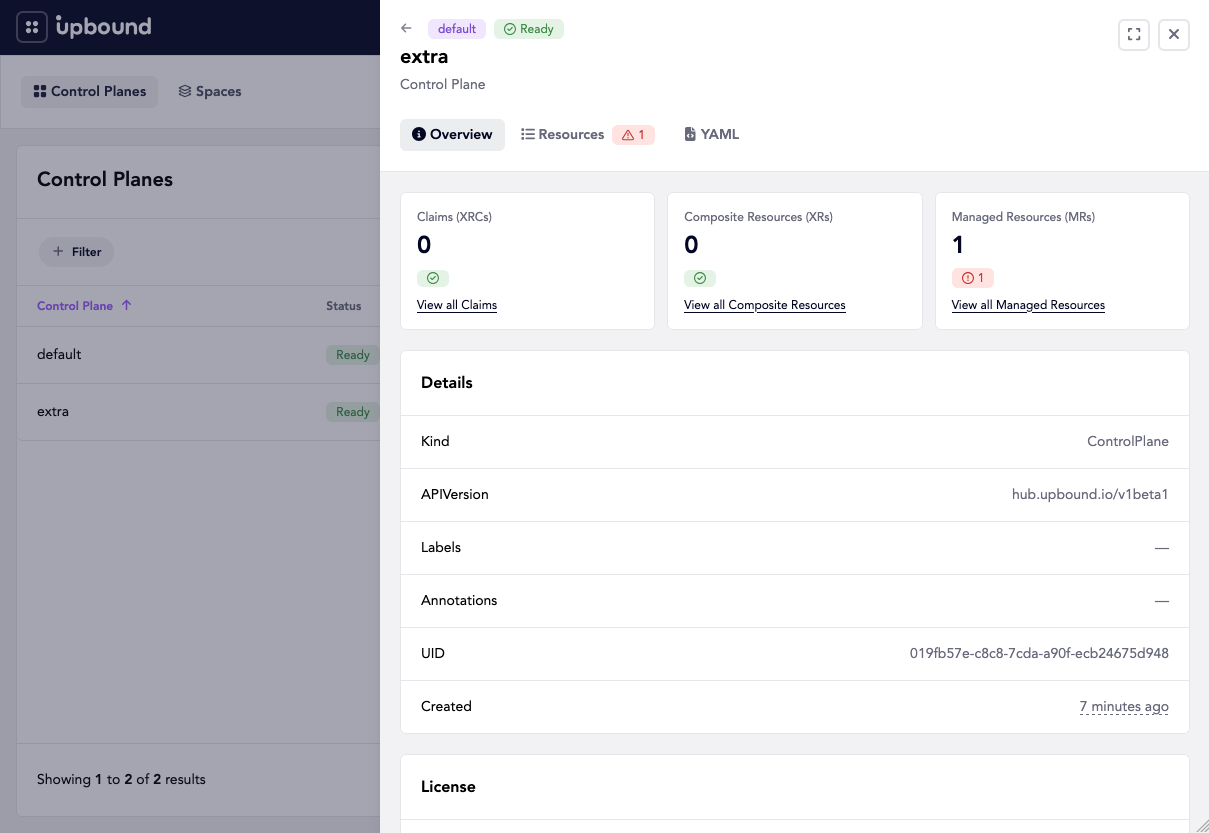

Select extra to see its resource counts and details:

Next steps

Create a managed resource

Install UXP and a configuration. Then watch a resource reach the hub.

If you're stopping here, follow Clean up to delete what you created.
